Posted by IT MACH

Case Study – University of Hertfordshire Law Court

11th October 2013Architecture, BB101, BB93, NAT Vent Attenuator, Natural Ventilation, Under Floor, Vented Facades
Case Study - University of Hertfordshire Law Court

The Law Court at the University of Hertfordshire is a £10M building with advanced facilities, including a full-scale courtroom with public gallery, a working law clinic, a purpose built mediation centre and a dedicated CPD suite, as well as a large number of offices and classrooms. Aiming for BREEAM status, the building was to be naturally ventilated. MACH Acoustics provided a vented facade solution using weather louvres, connected to a raised, vented floor containing the NVA.

Case Study - University of Hertfordshire Law Court
Situated on a busy campus and next to a busy bus route, the natural ventilation strategy need to be acoustically attenuated. Adding to the challenge was the fact that the building had already be designed for air inflow through the flooring, with acoustic dampers, louvre and bird mesh limiting flow to an already small 1.5m2 face area.
Only thanks to the adaptable NVA foam, MACH was able to design the attenuator around modulated Kingspan flooring, sitting on pedestals 360mm high, fully filling the void. The profile was designed to the same size as the 600x600mm grid created by the flooring, such that the NVA would be easy to install. By installing in segments like this, we were able to create the required length of attenuator for the noise level at the facade.
Case Study - University of Hertfordshire Law Court

The vent openings are made within the spandrel panel between transoms. Air passes into the cellular space by passing through a external vent opening, through the NAT Vent Attenuator. The floor void is used as plenum – air enters the rooms above by means of floor diffusers.

Case Study - University of Hertfordshire Law Court
Due to the bespoke nature of the NVA, the attenuator could be simply installed in coordination with the modular grid based flooring. The NVA segments were slid into place between the pedestals (1/4 circle sections were added to the corner profile to account for the structure), followed by the matching 600x600mm floor sections
Case Study - University of Hertfordshire Law Court
Building services often exist within the flooring void, including a heated element in this case. The NVA foam can be easily adapted on site to accommodate for these items, unlike a common pre-defined attenuators.
The build meet the BB93 and BB101 requirements as a teaching space whilst creating a dynamic and pleasant space for students. MACH Acoustics and it’s partners helped the centre become one of the most innovative law schools in the UK and was recently awarded ‘The Most Sustainable Construction Award 2011’ by Building Futures and has been short listed for several other awards.
Click the preview below to download the complete case study (pdf)
Case Study - University of Hertfordshire Law Court
blank
Posted by IT MACH

Case Study – Rogiet Primary School

28th April 2011BB101, BB93, Case Study, Cross Ventilation, NAT Vent Attenuator

Rogiet Primary School is a timber frame building, located between the M4, M48 and in close proximity to the intercity train between Swansea and London. Such a site is acoustically challenging before even considering natural ventilation. By performing an environmental survey of the site, MACH Acoustics successfully implemented natural ventilation though careful consideration of building placement and well executed cross ventilation.

Cross Ventilation

Case Study - Rogiet Primary School


The key to naturally ventilating this building was to use cross ventilation rather than single sided ventilation. This design step required the open areas within the facade to be 50 – 75% smaller than required for single sided ventilation – this design change made it possible to use natural ventilation.


Through McCanns (the M&E consultants) a BMS system was used to control the windows rather than to opt for a manually operated system. Windows under manual operation tend to be fully extended/opened to ≈150mm, rather than partially open. A BMS system adjusts the required openings to the exact level, significantly reducing openings by 5-25mm. The result is greatly reduced noise ingress from the building facade.

Design

Case Study - Rogiet Primary School

MACH Acoustics believe that a corridor wall should provide a physical and acoustic separation between two spaces. Working with White Design, Willmott Dixon and McCanns a bulkhead detail was built to incorporate the NAT Vet Attenuator.

The NAT Vent Attenuator is a product specifically designed to achieve BB93’s acoustic requirements and BB101’s ventilation specifications. A 1200mm NAT Vent Attenuator was installed into a bulkhead, formed from plasterboard and a timber. Using a product that was specifically designed to meet the requirements set down by BB93, means that acoustic separation across corridor walls was not comprised below that experienced on schools which do not use cross ventilation.

Rather than fitting standard grill on the classroom openings, a CNC cut alphabet provides the same function whilst enhancing the teaching space – an example of truly bespoke design options that the NVA offers.

Case Study - Rogiet Primary School

Result

Case Study - Rogiet Primary School

The school met all BB93 requirements and BB101 ventilation specifications. Not only this but the finished design was pleasing and in tune with its environment.

Headteacher, Kathryn Evans, said: “There was an echo in the old school building and you could always hear the hum of the motorway outside, but there’s nothing like that now. Our new building is very quiet, and it’s had a big impact on the children – they are so calm.”

Download the full case study (pdf)

Case Study - Rogiet Primary School


blank
Posted by IT MACH

Case Study – Windford Primary School

28th April 2011BB101, BB93, BREEAM, Case Study, NAT Vent Attenuator, Natural Ventilation, Vented Facades

Winford school is located directly under the flight path of Bristol Airport, as such noise ingress is a significant issue. During the design stage of this building several design options where reviewed.

Case Study - Windford Primary School

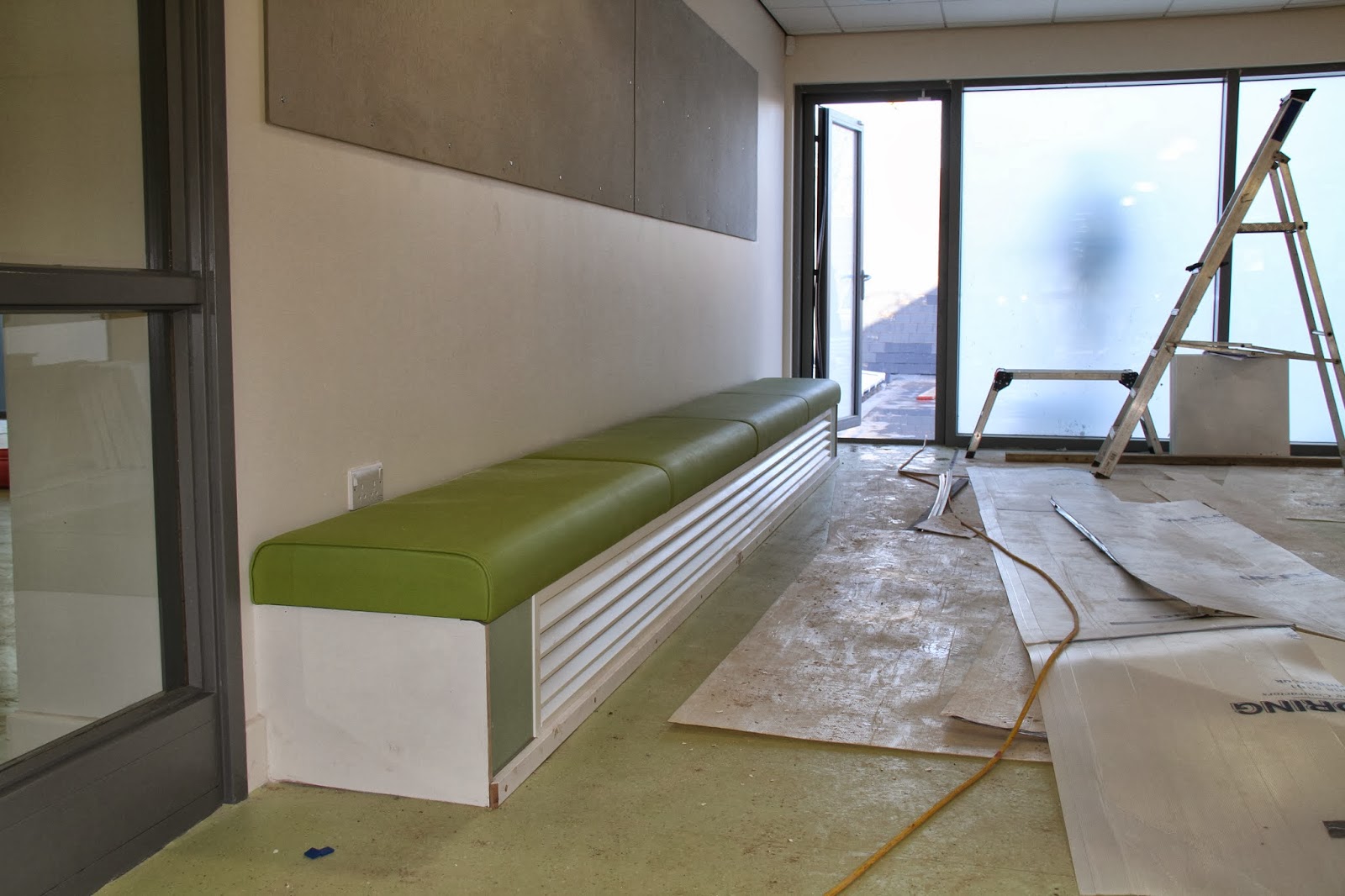

The school is a prime example of the versatility of the NVA and MACH Acoustics. Facade ventilation is incorporated through window and horizontal louvres. Cross ventilation is applied through internal benches and exhausted through atrium vents.

For the design of this building cost was a primary factor. There was a desire to naturally ventilate but under the flight path of Bristol Airport and with cost limits it was a challenge acoustically.

Case Study - Windford Primary School



A full natural ventilation strategy was designed in partnership with Stride Treglown Architects. Air would enter the building through openable windows and horizontal louvred ducts – controlled by a BMS – ventilate classrooms and exit through the roof of a central atrium known as the ‘heart’. Cross ventilators were designed between floors, discretely ducted within ground level benches – maximising building usage.

Case Study - Windford Primary School
Case Study - Windford Primary School
The horizontal facade included thermal dampers, actuated by the building management system (BMS) and featured a 900 bend; reducing the protrusion and increasing acoustic attenuation.
Case Study - Windford Primary School

The central ‘heart’ of the building includes a plenum, where the hot air will exit the building. The design included a NVA bulkhead, mounted with BMS controlled actuated windows.

Working with Strides, the flexibility and bespoke nature of the NVA allowed for this design and enabled the same space to include solar thermal panels.
Case Study - Windford Primary School
The school was fully compliant with BB93, confirming exceptional acoustic design considering the potential clash between natural ventilation and the busy Bristol Airport flight path.
Case Study - Windford Primary School
Importantly, the reception of the building has been extremely positive, with teachers, parents and pupils heaping praise for the spacious and pleasant working environment. Winford’s pupils, who, according to parents are now ‘excited’ to go to school, enjoy day lit, naturally ventilated internal spaces with glazed screens between them so that all activity is in view.

The build received a BREEAM ‘Very Good’ rating and will generate a minimum of 15% of predicted energy consumption, thanks in part to the well executed natural ventilation system.

Click the preview below to download the full case study (pdf).
Case Study - Windford Primary School
blank
Posted by IT MACH

Case Study – Dartington School Environmental Noise Break-in

17th September 2010Architecture, BB101, BB93, Eco Buildings, NAT Vent Attenuator, Natural Ventilation, Noise Map, Vented Facades

Environmental noise break-in can be a significant issue when naturally ventilating a building located on a noise site, even if the noise is only moderate.  Dartington school, previously reviewed within this blog with regard to the creative room acoustic treatment, also required creative forms of noise control measures to prevent noise break-in to noise sensitive teaching spaces.

The first stage of any noise break-in assessment is to establish noise levels across the site.  This was done by carrying out noise monitoring throughout the site, over the full operational hours of the school.  During the noise survey addition data was collect with respect to traffic flow levels and other data need to build a noise map of the site.  A noise map was used such to assess the effects of the new school and to establish noise levels across all facades.

Case Study - Dartington School Environmental Noise Break-in

The result of the original noise mapping exercise is shown above in the left hand image. The results of this assessment indicated that noise levels at the facades to the classroom block where higher than desirable. The solution was to use an acoustic screen and strategically placed earth bund to reduce noise levels at the classroom.  The tire wall is shown on the front cover of “BD Reviews” was used to form the required acoustics screen.  This design is highly sustainable since these used tires did not go to land fill.  Aesthetically there is a strong recycled image and additionally over time the vegetation shown in the image will cover the wall to form a green, live acoustics screen.

Case Study - Dartington School Environmental Noise Break-inA second observation from the above noise mapping exercise was that noise levels at the sports hall were too high to allow for natural ventilation by means of simple openable vents.  The solution was to added attenuated vents using the NAT Vent Attenuator.  The photo below shows this vent and the diagram provides 3D view through the vent box.

Case Study - Dartington School Environmental Noise Break-in

Case Study - Dartington School Environmental Noise Break-in
Click the preview below to download the full case study on Dartington
Case Study - Dartington School Environmental Noise Break-in
